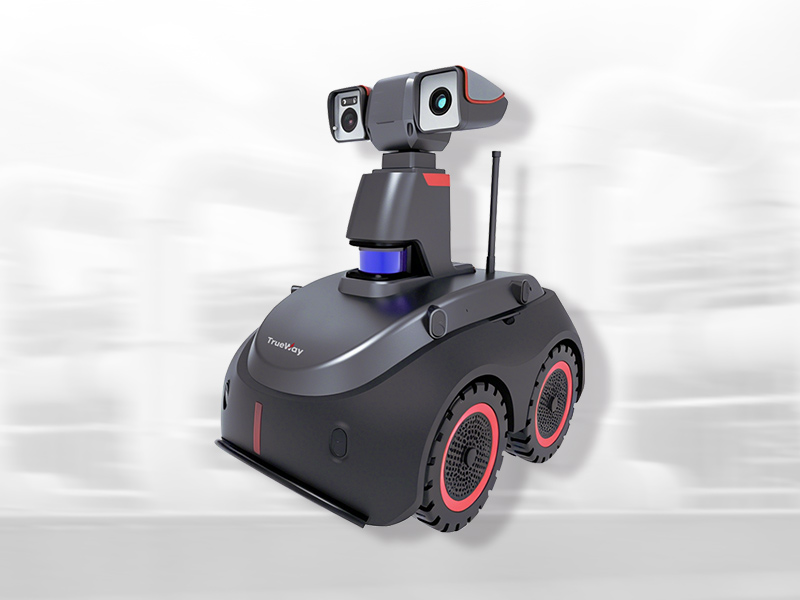

JW-100D Outdoor Intelligent Security Inspection Robot

The JW-100D outdoor intelligent security inspection robot is an outdoor wheeled robot centered on technologies including autonomous navigation, intelligent precision temperature measurement, intelligent image recognition and big data analysis. It delivers all-time autonomous intelligent inspection and monitoring for chemical parks, which can effectively improve park operation and maintenance efficiency and cut costs.

Core Functions

  Outdoor 3D Positioning & Navigation Technology

Adopting high-precision 3D LiDAR, differential GPS, inertial navigation and self-developed SLAM technology, the robot realizes high-accuracy 3D positioning and navigation, greatly boosting its positioning precision and stability.

  Intelligent Audio Analysis Technology

Supported by far-field sound pickup and intelligent audio analysis technology, it enables intelligent diagnosis of the health status of power equipment.

  Innovative Fully Autonomous Recharging Technology

To tackle the difficulty of automatic alignment during charging for outdoor robots, an innovative charging structure is developed to simplify the charging workflow significantly.

  Intelligent Meter Reading

Relying on proprietary image preprocessing technology and advanced meter detection & reading recognition algorithms, the robot automatically reads power meters with an overall recognition accuracy of over 96%.

  Fully Automatic Intelligent Precision Temperature Measurement

Based on target detection and monocular ranging algorithms, the system takes multiple factors affecting temperature measurement accuracy into comprehensive consideration, such as emissivity of measured objects, measuring distance, ambient temperature and atmospheric humidity. Machine learning is applied to build models for these variables, which substantially improves temperature measuring precision and efficiency.

Dimensions: 1161 × 479 × 664 mm (Length × Width × Height)

Positioning Accuracy: ≤10 cm

Steering Angle: ≥35°

Climbing Capacity: ≥20°

Parking Slope Gradient: ≥10°

Cruise Speed: ≤1.5 m/s

Continuous Working Time: ≥8 h

Charging Time: ≤3 h

Thermal Imaging Resolution: 640 × 512

Visible Light Camera Resolution: 1920 × 1080

Pan-Tilt Rotation Range: 360° horizontal, -90° ~ +90° vertical

Meter Reading Recognition Accuracy: ≥96%

Defect Recognition Accuracy: ≥90%

Equipment Fault Diagnosis Accuracy: ≥90%

Temperature Measurement Accuracy: ±2°C or ±2%, whichever is larger

Temperature Measurement Ranges: -20℃ ~ +150℃, 0℃ ~ 550℃
